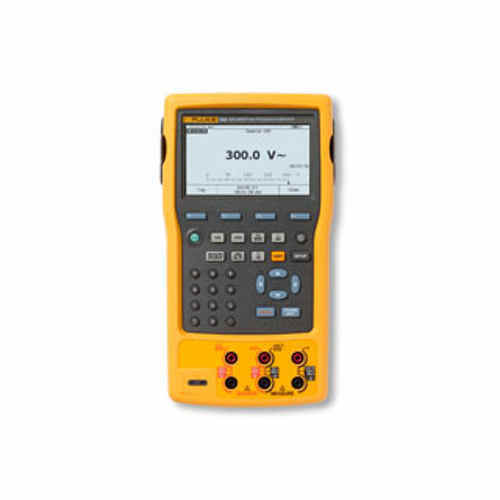

Fluke 754 Documenting Process Calibrator HART

Fluke 754 Documenting Process Calibrator HART
Fluke 754 Documenting Process Calibrator HART
Product Code : Fluke 754
Product Description

Being a client-centric firm, we are engaged in manufacturing and supplying sturdily-built Documenting Process Calibrator. This calibrator is known for compact design portability and safe operation that is highly applauded by clients. Our offered calibrator can be availed in various sizes, models and other specifications as per the variegated requirements of clients. We guarantee three-year warranty of our offered product. This calibrator is designed by a team of expert professionals using high grade raw materials that are sourced from certified vendors of the market. Documenting Process Calibrator is widely used in electrical and electronic applications.


Other information:


Overview :

  • The 754 is a power multifunction documenting calibrator that lets you download procedures, lists, and instructions created with software-or upload data for printing, archiving, and analysis.
  • The 754 also features a powerful built in HART interface capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.
Features :
  • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments

  • Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters

  • Power transmitters during test using loop supply with simultaneous mA measurement

  • Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules

  • Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results

  • Holds up to a full week of downloaded procedures and calibration results.

  • Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.

  • Easy to use

  • Three year warranty

  • Bright white dual display. Read both sourced and measured parameters simultaneously.

  • Multi lingual interface

  • Rechargeable Li-Ion battery for 10 hour uninterrupted use. Includes gas gauge.

  • Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.

  • Delivered with DPC/Track Sample software.

  • Compatible with many Asset Management software packages.


HART Capabilities

  • The 754 is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator.
  • It offers the communication capabilities of the 375 HART communicator.
  • Requires no external box or second tool for everyday HART calibration and maintenance.

  • Offers fast HART communication.

  • Supports popular models of HART transmitters, with more devise-specific command support than any other HART field calibrator.

  • Works with multiple masters, burst mode, and multi-drop configurations.

  • Is easy to update as additional instruments are added and new HART versions are released.

  • Interrogate to determine device type, manufacturer, model, tag.

  • Reconfigure the sensor mapping of dual sensor temperature transmitters.

  • Read HART PV function and smart transmitter digital output while measuring analog mA output.

  • Read and write HART configuration functions to make field adjustments to PV range points, damping, and other top-level configuration settings.

  • Re-label smart transmitters by reading and writing to the HART tag field.
