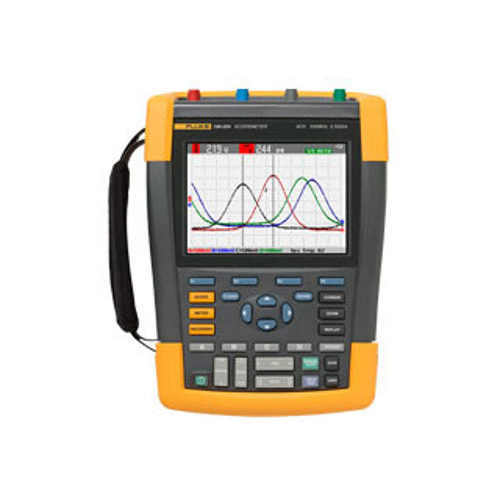

Fluke 190 Series II ScopeMeter Test Tool

Fluke 190 Series II ScopeMeter Test Tool
Fluke 190 Series II ScopeMeter Test Tool
Product Code : Fluke 190
Product Description

With the immense experience in this domain, we are involved in manufacturing and supplying ScopeMeter Test Tool. Our offered test tool is manufactured in our infrastructure facility to provide qualitative products to clients. Duly tested on various quality parameters, this test tool is available in various sizes and models. We ensure timely delivery of our consignments that is available in tamper proof packaging to avoid any defect. ScopeMeter Test Tool is known for optimum performance, portability, high strength and result accuracy.



Other details & specifications:



Features :

  • The new Fluke Scope Meter 190 Series II combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope.
  • Designed for plant maintenance engineers and technicians, these tough Scope Meter test tools go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications.
  • The new 190 Series II is the one test tool you will reach for to tackle just about any troubleshooting task.
  • They include a multimeter, TrendPlot and ScopeRecord roll paperless recorder modes and hands free operation with Connect-and-View triggering.
  • Two or four electrically isolated inputs

  • CAT III 1000V / CAT IV 600V safety rated

  • Choose from 60 MHz, 100MHz or 200MHz bandwidth models

  • Fast sampling rate, up to 2.5GS/s with up to 400 ps resolution

  • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details

  • Dedicated 5000 Count digital multimeter in 2 Channel models

  • Quad meter measurements via scope BNC inputs in 4 channel models

  • Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering

  • Scope Record roll mode, capture waveform sample data for up to 48 hours

  • TrendPlot, trend measurement readings for up to 22 days

  • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)

  • IP-51 rated for dust and drip proof to withstand harsh environments

  • Isolated USB ports for memory devices and PC connectivity

  • Li-Ion battery for extended operating timespan

  • 190-X04, 4 Channel models up to 7 hour (BP291 included standard)

  • 190-XX2, 2 Channel models up to 4 hours (BP290 included standard) or up to 8 hour with optional BP291

  • Charge spare battery using optional external battery charger EBC290

  • Easy-access battery door to make it easy to swap batteries

  • A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington lock
