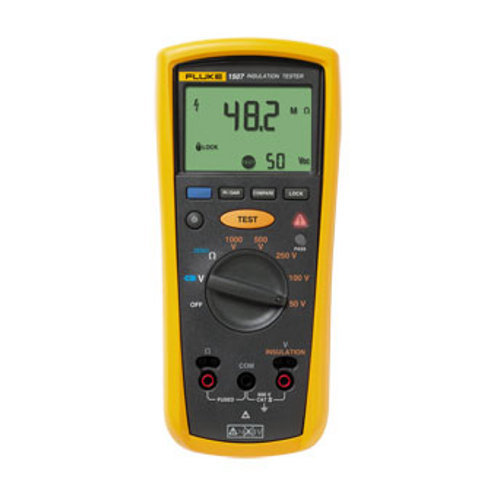

Fluke 1507/1503 Insulation Resistance Testers

Fluke 1507/1503 Insulation Resistance Testers
Fluke 1507/1503 Insulation Resistance Testers
Product Code : Fluke 1507/1503
Product Description

Fluke 1507/1503 Insulation Resistance Testers

Features

  • Insulation test range:
    • 1507: 0.01 M to 10 G
    • 1503: 0.1 M to 2000 M
  • Insulation test voltages:
    • 1507: 50 V, 100 V, 250 V, 500 V, 1000 V
    • 1503: 500 V, 1000 V
  • Save both time and money with Automatic calculation of Polarization Index and Dielectric Absorption Ratio (only available on the 1507)
  • Make repetitive tests simple and easy with the 1507s Compare (Pass/Fail) function (only available on the 1507)
  • Repetitive or hard-to-reach testing is easy with the remote test probe
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • Auto-discharge of capacitive voltage for added user protection
  • AC/DC voltage: 0.1 V to 600 V
  • 200 mA Continuity
  • Resistance: 0.01  to 20.00 k
  • Save battery power with auto power off
  • Read measurements easily with large, backlit display
  • CAT IV 600 V overvoltage category rating for added user protection
  • Remote probe, test leads, probes and alligator clips included with each tester
  • Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
  • Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
  • One year warranty
